Examples
All notebooks are located at /examples in the OpenOA repository, and can be modified and run on Binder.
Use ENGIE’s open data set
ENGIE provides access to the data of its ‘La Haute Borne’ wind farm through https://opendata-renewables.engie.com and through an API. The data can be used to create additional turbine objects and gives users the opportunity to work with further real-world data.
The series of notebooks in the ‘examples’ folder uses SCADA data downloaded from https://opendata-renewables.engie.com, saved in the ‘examples/data’ folder. Additional plant level meter, availability, and curtailment data were synthesized based on the SCADA data.
In the following example, data is loaded into a turbine object and plotted as a power curve. The selected turbine can be changed if desired.
[1]:
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from bokeh.plotting import show
from bokeh.io import output_notebook
output_notebook()
from project_ENGIE import Project_Engie
from operational_analysis.toolkits import filters
from operational_analysis.toolkits import power_curve
from operational_analysis.toolkits import pandas_plotting
Import the data
[2]:
project = Project_Engie('./data/la_haute_borne')
project.prepare()
INFO:project_ENGIE:Loading SCADA data
INFO:operational_analysis.types.timeseries_table:Loading name:la-haute-borne-data-2014-2015
INFO:project_ENGIE:SCADA data loaded
INFO:project_ENGIE:Timestamp QC and conversion to UTC
INFO:project_ENGIE:Correcting for out of range of temperature variables
INFO:project_ENGIE:Flagging unresponsive sensors
INFO:project_ENGIE:Converting field names to IEC 61400-25 standard
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:merra2_la_haute_borne
INFO:operational_analysis.types.timeseries_table:Loading name:era5_wind_la_haute_borne
Now the data is imported we can take a look at the wind farm. There are 4 turbines, nearby foresty, a small town and neighbouring wind farms, which could impact on performance. Now lets have a look at the turbines.
[3]:
show(pandas_plotting.plot_windfarm(project,tile_name="OpenMap",plot_width=600,plot_height=600))
[4]:
# List of turbines
turb_list = project.scada.df.id.unique()
turb_list
[4]:
array(['R80736', 'R80721', 'R80790', 'R80711'], dtype=object)
Let’s examine the first turbine from the list above.
[5]:
df = project.scada.df.loc[project.scada.df['id'] == turb_list[0]]
windspeed = df["wmet_wdspd_avg"]
power_kw = df["wtur_W_avg"]/1000 # Put into kW
[6]:
def plot_flagged_pc(ws, p, flag_bool, alpha):
plt.scatter(ws, p, s = 1, alpha = alpha)
plt.scatter(ws[flag_bool], p[flag_bool], s = 1, c = 'red')
plt.xlabel('Wind speed (m/s)')
plt.ylabel('Power (W)')
plt.show()
First, we’ll make a scatter plot the raw power curve data.
[7]:

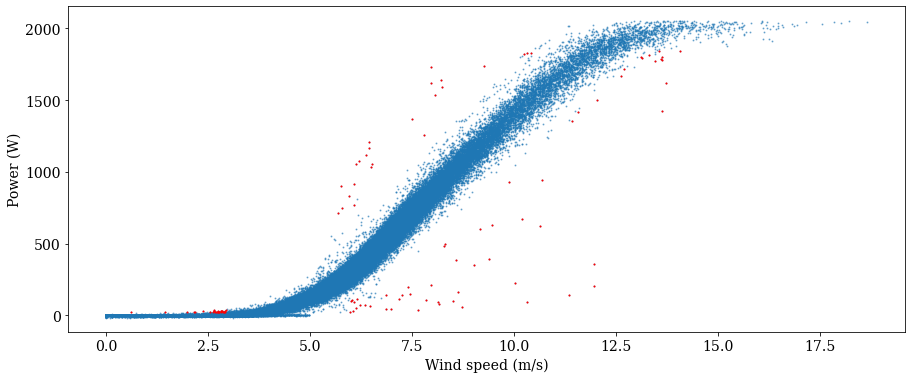

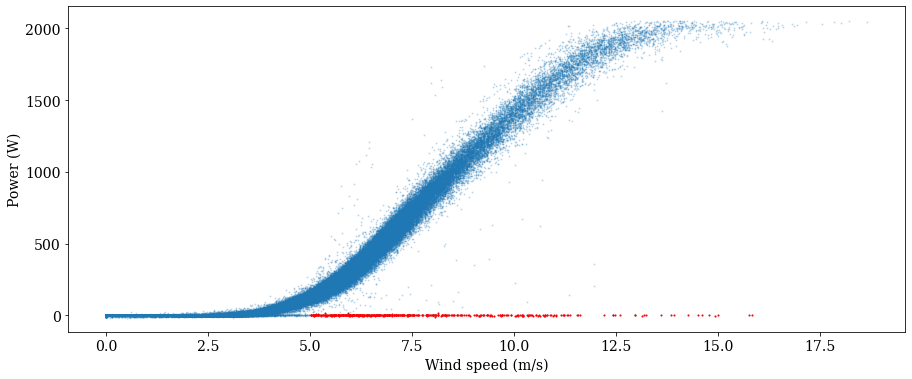

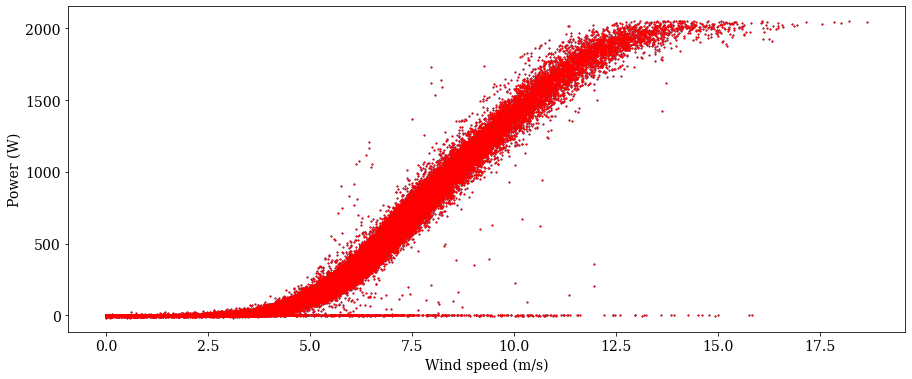

plot_flagged_pc(windspeed, power_kw, np.repeat(True, df.shape[0]), 1)
Range filter
[8]:
out_of_range = filters.range_flag(windspeed, below=0, above=70)
windspeed[out_of_range].head()
[8]:
Series([], Name: wmet_wdspd_avg, dtype: float64)
No wind speeds out of range
Window range filter
Now, we’ll apply a window range filter to remove data with power values outside of the window from 20 to 2100 kW for wind speeds between 5 and 40 m/s.
[9]:
out_of_window = filters.window_range_flag(windspeed, 5., 40, power_kw, 20., 2100.)
plot_flagged_pc(windspeed, power_kw, out_of_window, 0.2)
Let’s remove these flagged data from consideration
[10]:
windspeed_filt1 = windspeed[~out_of_window]
power_kw_filt1 = power_kw[~out_of_window]
Bin filter
We may be interested in fitting a power curve to data representing ‘normal’ turbine operation. In other words, we want to flag all anomalous data or data represenatative of underperformance. To do this, the ‘bin_filter’ function is useful. It works by binning the data by a specified variable, bin width, and start and end points. The criteria for flagging is based on some measure (scalar or standard deviation) from the mean or median of the bin center.
As an example, let’s bin on power in 100 kW increments, starting from 25.0 kW but stopping at 90% of peak power (i.e. we don’t want to flag all the data at peak power and high wind speed. Let’s use a scalar threshold of 1.5 m/s from the median for each bin. Let’s also consider data on both sides of the curve by setting the ‘direction’ parameter to ‘all’
[11]:
max_bin = 0.90*power_kw_filt1.max()
bin_outliers = filters.bin_filter(power_kw_filt1, windspeed_filt1, 100, 1.5, 'median', 20., max_bin, 'scalar', 'all')
plot_flagged_pc(windspeed_filt1, power_kw_filt1, bin_outliers, 0.5)
As seen above, one call for the bin filter has done a decent job of cleaning up the power curve to represent ‘normal’ operation, without excessive removal of data points. There are a few points at peak power but low wind speed that weren’t flagged, however. Let catch those, and then remove those as well as the flagged data above, and plot our ‘clean’ power curve
[12]:
windspeed_filt2 = windspeed_filt1[~bin_outliers]
power_kw_filt2 = power_kw_filt1[~bin_outliers]
Unresponsive Filter
As a final filtering demonstration, we can look for an unrespsonsive sensor (i.e. repeating measurements). In this case, let’s look for 3 or more repeating wind speed measurements:
[13]:
frozen = filters.unresponsive_flag(windspeed_filt2, 3)
windspeed_filt2[frozen]
[13]:
time
2014-01-10 14:40:00 0.0
2014-01-10 14:50:00 0.0
2014-01-10 15:00:00 0.0
2014-01-11 22:30:00 0.0
2014-01-11 22:40:00 0.0
...
2015-12-09 22:50:00 0.0
2015-12-09 23:00:00 0.0
2015-12-15 02:20:00 5.5
2015-12-15 02:30:00 5.5
2015-12-15 02:40:00 5.5
Name: wmet_wdspd_avg, Length: 1926, dtype: float64
We actually found a lot, so let’s remove these data as well before moving on to power curve fitting.
Note that many of the unresponsive sensor values identified above are likely caused by the discretization of the data to only two decimal places. However, the goal is to illustrate the filtering process.
[14]:
windspeed_final = windspeed_filt2[~frozen]
power_kw_final = power_kw_filt2[~frozen]
Power curve fitting
We will now consider three different models for fitting a power curve to the SCADA data.
[ ]:
# Fit the power curves
iec_curve = power_curve.IEC(windspeed_final, power_kw_final)
l5p_curve = power_curve.logistic_5_parametric(windspeed_final, power_kw_final)
spline_curve = power_curve.gam(windspeed_final, power_kw_final, n_splines = 20)
[ ]:
# Plot the results
x = np.linspace(0,20,100)
plt.figure(figsize = (10,6))
plt.scatter(windspeed_final, power_kw_final, alpha=0.5, s = 1, c = 'gray')
plt.plot(x, iec_curve(x), color="red", label = 'IEC', linewidth = 3)
plt.plot(x, spline_curve(x), color="C1", label = 'Spline', linewidth = 3)
plt.plot(x, l5p_curve(x), color="C2", label = 'L5P', linewidth = 3)
plt.xlabel('Wind speed (m/s)')
plt.ylabel('Power (kW)')
plt.legend()
plt.show()
The above plot shows that the IEC method accurately captures the power curve, although it results in a ‘choppy’ fit, while the L5P model (constrained by its parametric form) deviates from the knee of the power curve through peak production. The spline fit tends to fit the best.
Quality Check Diagnostic Work
This notebook illustrates some quality control steps that should be considered when analyzing a new dataset. In this example we’ll use the ‘WindToolKitQualityControlDiagnosticSuite’ class to automate some of the QC analysis for SCADA data.
Step 1: Load in Data
[1]:
%load_ext autoreload
%autoreload 2
[2]:
from operational_analysis.methods.quality_check_automation import WindToolKitQualityControlDiagnosticSuite as QC
import pandas as pd
import numpy as np
[3]:
scada_df = pd.read_csv('./data/la_haute_borne/la-haute-borne-data-2014-2015.csv')
[4]:
scada_df.head()
[4]:
| Wind_turbine_name | Date_time | Ba_avg | P_avg | Ws_avg | Va_avg | Ot_avg | Ya_avg | Wa_avg | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | R80736 | 2014-01-01T01:00:00+01:00 | -1.00 | 642.78003 | 7.12 | 0.66 | 4.69 | 181.34000 | 182.00999 |
| 1 | R80721 | 2014-01-01T01:00:00+01:00 | -1.01 | 441.06000 | 6.39 | -2.48 | 4.94 | 179.82001 | 177.36000 |
| 2 | R80790 | 2014-01-01T01:00:00+01:00 | -0.96 | 658.53003 | 7.11 | 1.07 | 4.55 | 172.39000 | 173.50999 |
| 3 | R80711 | 2014-01-01T01:00:00+01:00 | -0.93 | 514.23999 | 6.87 | 6.95 | 4.30 | 172.77000 | 179.72000 |
| 4 | R80790 | 2014-01-01T01:10:00+01:00 | -0.96 | 640.23999 | 7.01 | -1.90 | 4.68 | 172.39000 | 170.46001 |
Convert Date_time to a datetime object
[5]:
# To illustrate timezone QC functions, we'll remove the timezone information
date = [s[0:10] for s in scada_df['Date_time']]
time = [s[11:19] for s in scada_df['Date_time']]
datetime = [date[s] + ' ' + time[s] for s in np.arange(len(date))]
scada_df['datetime'] = pd.to_datetime(datetime, format = "%Y-%m-%d %H:%M:%S")
scada_df.set_index('datetime', inplace = True, drop = False)
[6]:
scada_df.dtypes
[6]:
Wind_turbine_name object
Date_time object
Ba_avg float64
P_avg float64
Ws_avg float64
Va_avg float64
Ot_avg float64
Ya_avg float64
Wa_avg float64
datetime datetime64[ns]
dtype: object
Step 2: Initializing QC and Performing the Run Method
Now that we have our dataset with the necessary columns and datatypes, we are ready to perform our quality check diagnostic. This analysis will not make the adjustments for us, but it will allow us to quickly flag some key irregularities that we need to manage before going on.
To start, let’s initialize a QC object, qc, and call its run method.
[7]:
qc = QC(df = scada_df,
ws_field = 'Ws_avg',
power_field= 'P_avg',
time_field = 'datetime',
id_field= 'Wind_turbine_name',
freq = '10T',
lat_lon = (48.45, 5.586),
dst_subset = 'France',
check_tz = False)
INFO:operational_analysis.methods.quality_check_automation:Initializing QC_Automation Object
[8]:
qc.run()
INFO:operational_analysis.methods.quality_check_automation:Identifying Time Duplications
INFO:operational_analysis.methods.quality_check_automation:Identifying Time Gaps
INFO:operational_analysis.methods.quality_check_automation:Grabbing DST Transition Times
INFO:operational_analysis.methods.quality_check_automation:Isolating Extrema Values
INFO:operational_analysis.methods.quality_check_automation:QC Diagnostic Complete
Step 3: Deep Dive with QC Diagnostic Results
Let’s take a deeper look at the results of our QC diagnostic.
Perform a general scan of the distributions for each numeric variable
[9]:
qc.column_histograms()
Check ranges of each variable
[10]:
qc._max_min
[10]:
| min | max | |
|---|---|---|
| Wind_turbine_name | R80711 | R80790 |
| Date_time | 2014-01-01T01:00:00+01:00 | 2016-01-01T00:50:00+01:00 |
| Ba_avg | -121.26 | 262.61 |
| P_avg | -17.92 | 2051.87 |
| Ws_avg | 0 | 19.31 |
| Va_avg | -179.95 | 179.99 |
| Ot_avg | -273.2 | 39.89 |
| Ya_avg | 0 | 360 |
| Wa_avg | 0 | 360 |
| datetime | 2014-01-01 01:00:00 | 2016-01-01 00:50:00 |
These values look fairly reasonable and consistent.
Identify any timestamp duplications and timestamp gaps.
Duplications in October and gaps in March would suggest DST.
[11]:
qc._time_duplications
[11]:
datetime
2014-03-30 03:00:00 2014-03-30 03:00:00
2014-03-30 03:00:00 2014-03-30 03:00:00
2014-03-30 03:00:00 2014-03-30 03:00:00
2014-03-30 03:00:00 2014-03-30 03:00:00
2014-03-30 03:10:00 2014-03-30 03:10:00
2014-03-30 03:10:00 2014-03-30 03:10:00
2014-03-30 03:10:00 2014-03-30 03:10:00
2014-03-30 03:10:00 2014-03-30 03:10:00
2014-03-30 03:20:00 2014-03-30 03:20:00
2014-03-30 03:20:00 2014-03-30 03:20:00
2014-03-30 03:20:00 2014-03-30 03:20:00
2014-03-30 03:20:00 2014-03-30 03:20:00
2014-03-30 03:30:00 2014-03-30 03:30:00
2014-03-30 03:30:00 2014-03-30 03:30:00
2014-03-30 03:30:00 2014-03-30 03:30:00
2014-03-30 03:30:00 2014-03-30 03:30:00
2014-03-30 03:40:00 2014-03-30 03:40:00
2014-03-30 03:40:00 2014-03-30 03:40:00
2014-03-30 03:40:00 2014-03-30 03:40:00
2014-03-30 03:40:00 2014-03-30 03:40:00
2014-03-30 03:50:00 2014-03-30 03:50:00
2014-03-30 03:50:00 2014-03-30 03:50:00
2014-03-30 03:50:00 2014-03-30 03:50:00
2014-03-30 03:50:00 2014-03-30 03:50:00
2015-03-29 03:00:00 2015-03-29 03:00:00
2015-03-29 03:00:00 2015-03-29 03:00:00
2015-03-29 03:00:00 2015-03-29 03:00:00
2015-03-29 03:00:00 2015-03-29 03:00:00
2015-03-29 03:10:00 2015-03-29 03:10:00
2015-03-29 03:10:00 2015-03-29 03:10:00
2015-03-29 03:10:00 2015-03-29 03:10:00
2015-03-29 03:10:00 2015-03-29 03:10:00
2015-03-29 03:20:00 2015-03-29 03:20:00
2015-03-29 03:20:00 2015-03-29 03:20:00
2015-03-29 03:20:00 2015-03-29 03:20:00
2015-03-29 03:20:00 2015-03-29 03:20:00
2015-03-29 03:30:00 2015-03-29 03:30:00
2015-03-29 03:30:00 2015-03-29 03:30:00
2015-03-29 03:30:00 2015-03-29 03:30:00
2015-03-29 03:30:00 2015-03-29 03:30:00
2015-03-29 03:40:00 2015-03-29 03:40:00
2015-03-29 03:40:00 2015-03-29 03:40:00
2015-03-29 03:40:00 2015-03-29 03:40:00
2015-03-29 03:40:00 2015-03-29 03:40:00
2015-03-29 03:50:00 2015-03-29 03:50:00
2015-03-29 03:50:00 2015-03-29 03:50:00
2015-03-29 03:50:00 2015-03-29 03:50:00
2015-03-29 03:50:00 2015-03-29 03:50:00
Name: datetime, dtype: datetime64[ns]
[12]:
qc._time_gaps
[12]:
12678 2014-03-30 02:00:00
12679 2014-03-30 02:10:00
12680 2014-03-30 02:20:00
12681 2014-03-30 02:30:00
12682 2014-03-30 02:40:00
12683 2014-03-30 02:50:00
65094 2015-03-29 02:00:00
65095 2015-03-29 02:10:00
65096 2015-03-29 02:20:00
65097 2015-03-29 02:30:00
65098 2015-03-29 02:40:00
65099 2015-03-29 02:50:00
dtype: datetime64[ns]
Based on the duplicated timestamps, it does seem like there is a DST correction in spring but no time gap in the fall
Check the DST plot to look in more detail
[13]:

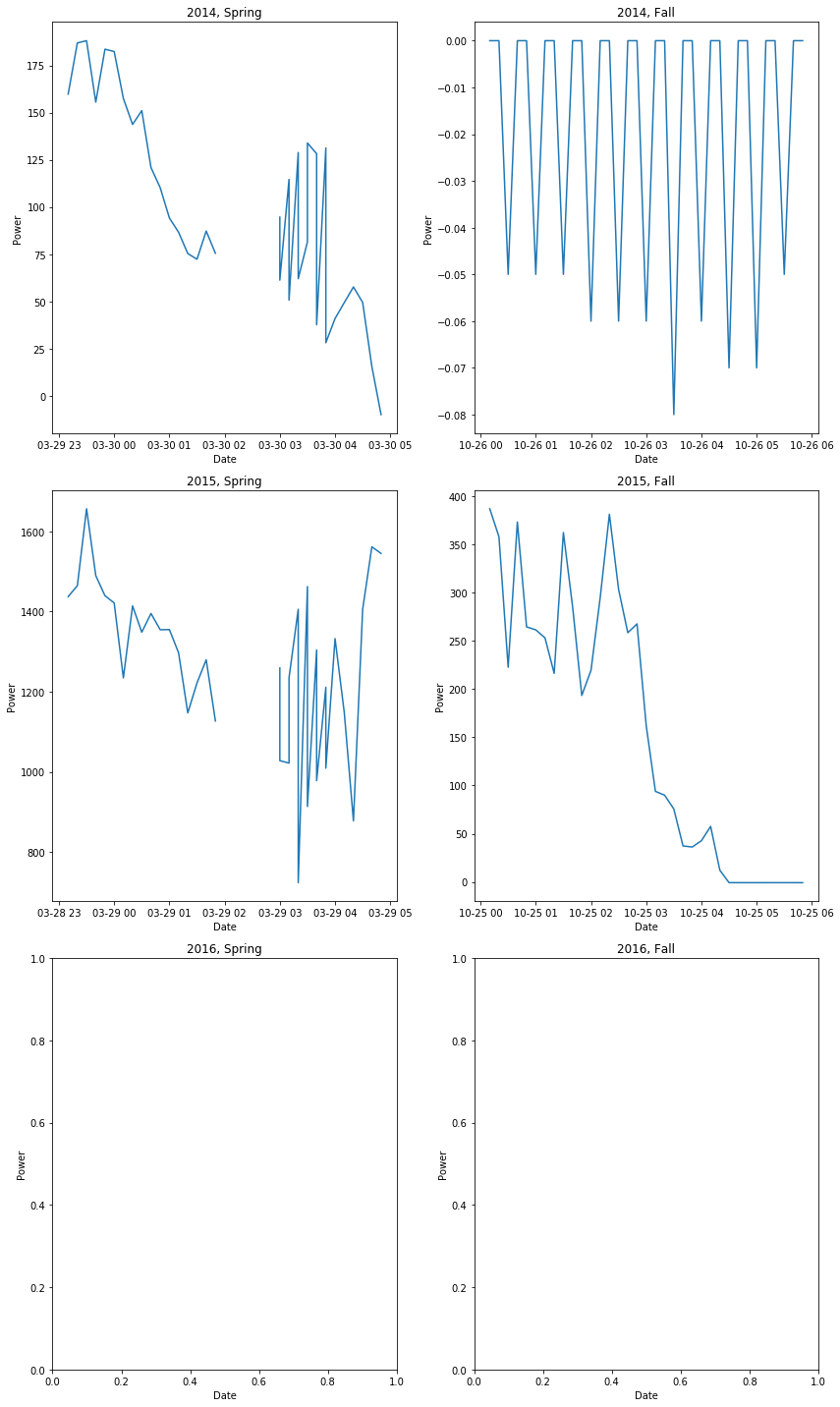

qc.daylight_savings_plot()
/Users/esimley/opt/anaconda3/lib/python3.7/site-packages/pandas/plotting/_converter.py:129: FutureWarning: Using an implicitly registered datetime converter for a matplotlib plotting method. The converter was registered by pandas on import. Future versions of pandas will require you to explicitly register matplotlib converters.
To register the converters:
>>> from pandas.plotting import register_matplotlib_converters
>>> register_matplotlib_converters()
warnings.warn(msg, FutureWarning)
So we do in fact have a gap in the spring data when DST kicks in (as well as duplicated data for some reason) but not duplicated data in the fall.
The final question regarding datetime is whether we’re in UTC or local. Given the daylights savings gap, it’s likely we’re in local. This is further confirmed by the raw datetime info provided in the SCADA file, which shows either a +1h or +2h timezone from UTC. So we are operating in local time. Therefore, the project import script for La Haute Borne should shift the timestep back to put it into UTC.

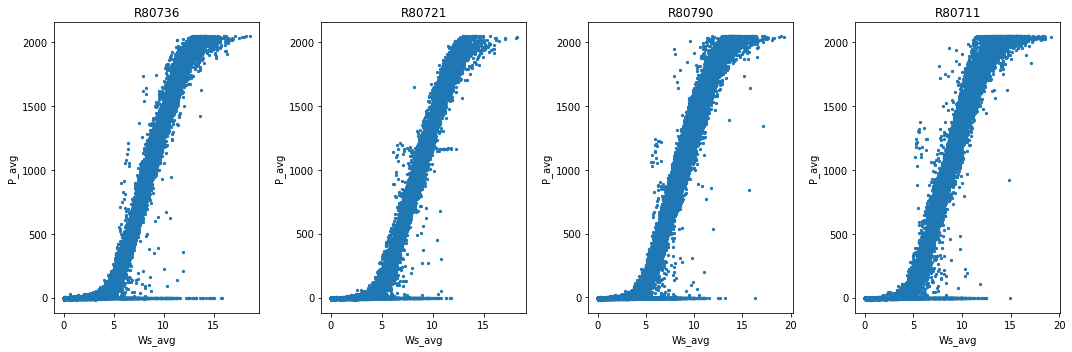

Inspect the turbine power curves
Now that we have gathered some useful information about our timeseries, the one last check we may want to make is to inspect each turbine profile. We can look at each turbine’s power curve and perform an initial scan for irregularities.
[14]:
qc.plot_by_id('Ws_avg', 'P_avg')
Overall, these power curves look pretty common with some downtime, derating, and what look like a few erroneous data points.
Step 4: Performing adjustments on our data
Recall that this notebook is only for diagnostic QC of plant data and does not actually change the data in the project import script. Any issues identifed here should be incorporated into the project import script.
Note that the necessary corrections have alreayd been applied to the project import script for this data.
[ ]:
First step in gap analysis is to determine the AEP based on operational data.
[ ]:
%load_ext autoreload
%autoreload 2
This notebook provides an overview and walk-through of the steps taken to produce a plant-level operational energy asssessment (OA) of a wind plant in the PRUF project. The La Haute-Borne wind farm is used here and throughout the example notebooks.
Uncertainty in the annual energy production (AEP) estimate is calculated through a Monte Carlo approach. Specifically, inputs into the OA code as well as intermediate calculations are randomly sampled based on their specified or calculated uncertainties. By performing the OA assessment thousands of times under different combinations of the random sampling, a distribution of AEP values results from which uncertainty can be deduced. Details on the Monte Carlo approach will be provided throughout this notebook.
[2]:
# Ignore package deprecation warnings prior to import. These are
# not dependent on OpenOA, but internal to the packages themselves.
import warnings
warnings.filterwarnings(
action='ignore',
category=DeprecationWarning,
module=r'.*statsmodels'
)
warnings.filterwarnings(
action='ignore',
category=DeprecationWarning,
module=r'.*numpy'
)
Step 1: Import plant data into notebook
A zip file included in the OpenOA ‘examples/data’ folder needs to be unzipped to run this step. Note that this zip file should be unzipped automatically as part of the project.prepare() function call below. Once unzipped, 4 CSV files will appear in the ‘examples/data/la_haute_borne’ folder.
[3]:
# Import required packages
import os
import matplotlib.pyplot as plt
import numpy as np
import statsmodels.api as sm
import pandas as pd
import copy
import warnings
from project_ENGIE import Project_Engie
from operational_analysis.methods import plant_analysis
In the call below, make sure the appropriate path to the CSV input files is specfied. In this example, the CSV files are located directly in the ‘examples/data/la_haute_borne’ folder
[4]:
# Load plant object
project = Project_Engie('./data/la_haute_borne')
[5]:
# Prepare data
project.prepare()
INFO:project_ENGIE:Loading SCADA data
INFO:operational_analysis.types.timeseries_table:Loading name:la-haute-borne-data-2014-2015
INFO:project_ENGIE:SCADA data loaded
INFO:project_ENGIE:Timestamp QC and conversion to UTC
INFO:project_ENGIE:Correcting for out of range of temperature variables
INFO:project_ENGIE:Flagging unresponsive sensors
INFO:project_ENGIE:Converting field names to IEC 61400-25 standard
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:merra2_la_haute_borne
INFO:operational_analysis.types.timeseries_table:Loading name:era5_wind_la_haute_borne
Step 2: Review the data
Several Pandas data frames have now been loaded. Histograms showing the distribution of the plant-level metered energy, availability, and curtailment are shown below:
[6]:
# Review plant data
fig, (ax1, ax2, ax3) = plt.subplots(ncols = 3, figsize = (15,5))
ax1.hist(project._meter.df['energy_kwh'], 40) # Metered energy data
ax2.hist(project._curtail.df['availability_kwh'], 40) # Curtailment and availability loss data
ax3.hist(project._curtail.df['curtailment_kwh'], 40) # Curtailment and availability loss data
plt.tight_layout()
plt.show()
Step 3: Process the data into monthly averages and sums
The raw plant data can be in different time resolutions (in this case 10-minute periods). The following steps process the data into monthly averages and combine them into a single ‘monthly’ data frame to be used in the OA assessment.
[7]:
project._meter.df.head()
[7]:
| energy_kwh | time | |
|---|---|---|
| time | ||
| 2014-01-01 00:00:00 | 369.726 | 2014-01-01 00:00:00 |
| 2014-01-01 00:10:00 | 376.409 | 2014-01-01 00:10:00 |
| 2014-01-01 00:20:00 | 309.199 | 2014-01-01 00:20:00 |
| 2014-01-01 00:30:00 | 350.176 | 2014-01-01 00:30:00 |
| 2014-01-01 00:40:00 | 286.333 | 2014-01-01 00:40:00 |
First, we’ll create a MonteCarloAEP object which is used to calculate long-term AEP. Two renalaysis products are specified as arguments.
[8]:
pa = plant_analysis.MonteCarloAEP(project, reanal_products = ['era5', 'merra2'])
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
Let’s view the result. Note the extra fields we’ve calculated that we’ll use later for filtering: - energy_nan_perc : the percentage of NaN values in the raw revenue meter data used in calculating the monthly sum. If this value is too large, we shouldn’t include this month - nan_flag : if too much energy, availability, or curtailment data was missing for a given month, flag the result - num_days_expected : number of days in the month (useful for normalizing monthly gross energy later) - num_days_actual : actual number of days per month as found in the data (used when trimming monthly data frame)
[9]:
# View the monthly data frame
pa._aggregate.df.head()
[9]:
| energy_gwh | energy_nan_perc | num_days_expected | num_days_actual | availability_gwh | curtailment_gwh | gross_energy_gwh | availability_pct | curtailment_pct | avail_nan_perc | curt_nan_perc | nan_flag | availability_typical | curtailment_typical | combined_loss_valid | era5 | merra2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| time | |||||||||||||||||
| 2014-01-01 | 1.279667 | 0.0 | 31 | 31 | 0.008721 | 0.000000 | 1.288387 | 0.006769 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 7.314878 | 7.227947 |
| 2014-02-01 | 1.793873 | 0.0 | 28 | 28 | 0.005280 | 0.000000 | 1.799153 | 0.002934 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 8.347006 | 8.598686 |
| 2014-03-01 | 0.805549 | 0.0 | 31 | 31 | 0.000151 | 0.000000 | 0.805700 | 0.000188 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 5.169673 | 5.207071 |
| 2014-04-01 | 0.636472 | 0.0 | 30 | 30 | 0.002773 | 0.000000 | 0.639245 | 0.004338 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 4.756275 | 4.872304 |
| 2014-05-01 | 1.154255 | 0.0 | 31 | 31 | 0.015176 | 0.000225 | 1.169656 | 0.012974 | 0.000192 | 0.0 | 0.0 | False | True | True | True | 6.162751 | 6.351635 |
Step 4: Review reanalysis data
Reanalysis data will be used to long-term correct the operational energy over the plant period of operation to the long-term. It is important that we only use reanalysis data that show reasonable trends over time with no noticeable discontinuities. A plot like below, in which normalized annual wind speeds are shown from 1997 to present, provides a good first look at data quality.

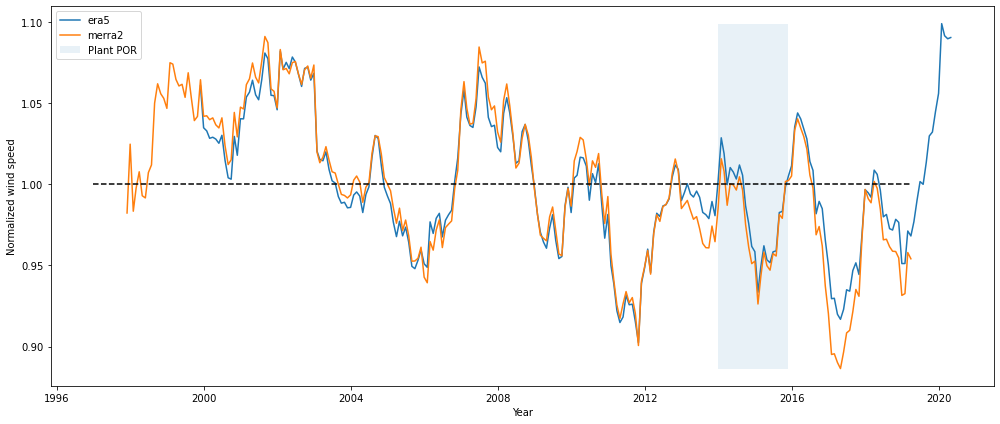

The plot shows that both of the reanalysis products track each other reasonably well and seem well-suited for the analysis.
[10]:
pa.plot_reanalysis_normalized_rolling_monthly_windspeed().show()
Step 5: Review energy and loss data
It is useful to take a look at the energy data and make sure the values make sense. We begin with scatter plots of gross energy and wind speed for each reanalysis product. We also show a time series of gross energy, as well as availability and curtailment loss.

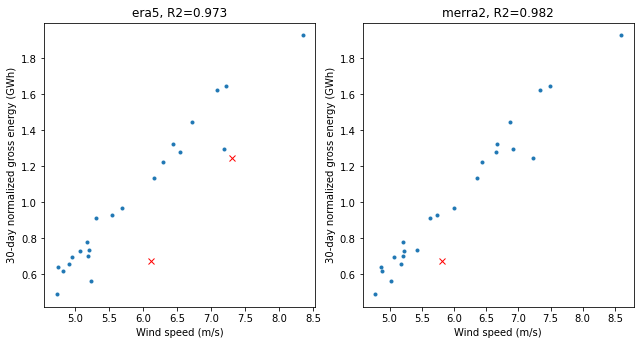

Let’s start with the scatter plots of gross energy vs wind speed for each reanalysis product. Here we use the ‘Robust Linear Model’ (RLM) module of the Statsmodels package with the default Huber algorithm to produce a regression fit that excludes outliers. Data points in red show the outliers, and were excluded based on a Huber sensitivity factor of 3.0 (the factor is varied between 2.0 and 3.0 in the Monte Carlo simulation).
The plots below reveal that: - there are some outliers - Both renalysis products are strongly correlated with plant energy
[11]:
pa.plot_reanalysis_gross_energy_data(outlier_thres=3).show()

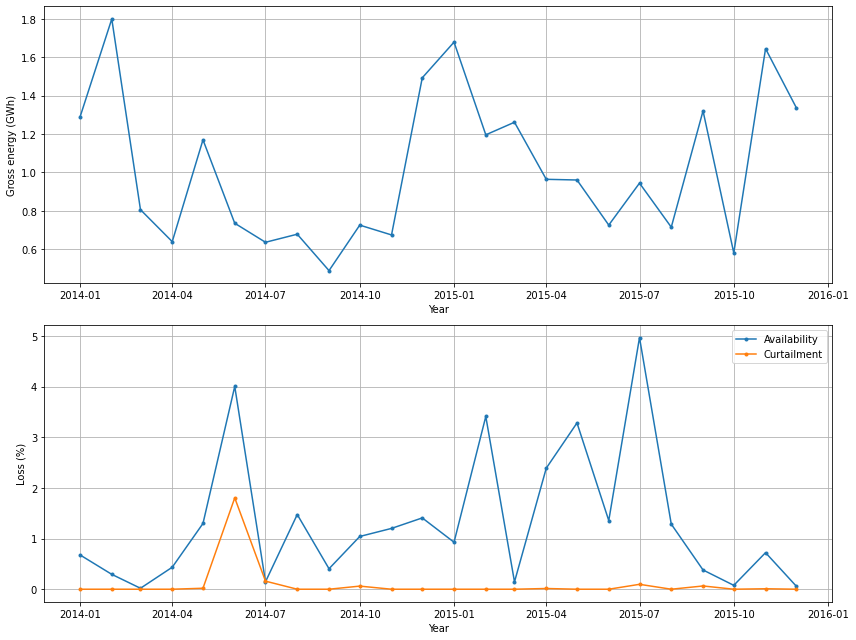

Next we show time series plots of the monthly gross energy, availabilty, and curtialment. Note that the availability and curtailment data were estimated based on SCADA data from the plant.
Long-term availability and curtailment losses for the plant are calculated based on average percentage losses for each calendar month. Summing those average values weighted by the fraction of long-term gross energy generated in each month yields the long-term annual estimates. Weighting by monthly long-term gross energy helps account for potential correlation between losses and energy production (e.g., high availability losses in summer months with lower energy production). The long-term losses are calculated in Step 9.
[12]:
pa.plot_aggregate_plant_data_timeseries().show()
Step 6: Specify availabilty and curtailment data not represenative of actual plant performance
There may be anomalies in the reported availabilty that shouldn’t be considered representative of actual plant performance. Force majeure events (e.g. lightning) are a good example. Such losses aren’t typically considered in pre-construction AEP estimates; therefore, plant availablity loss reported in an operational AEP analysis should also not include such losses.
The ‘availability_typical’ and ‘curtailment_typical’ fields in the monthly data frame are initially set to True. Below, individual months can be set to ‘False’ if it is deemed those months are unrepresentative of long-term plant losses. By flagging these months as false, they will be omitted when assessing average availabilty and curtailment loss for the plant.
Justification for removing months from assessing average availabilty or curtailment should come from conversations with the owner/operator. For example, if a high-loss month is found, reasons for the high loss should be discussed with the owner/operator to determine if those losses can be considered representative of average plant operation.
[13]:
# For illustrative purposes, let's suppose a few months aren't representative of long-term losses
pa._aggregate.df.loc['2014-11-01',['availability_typical','curtailment_typical']] = False
pa._aggregate.df.loc['2015-07-01',['availability_typical','curtailment_typical']] = False
Step 7: Select reanalysis products to use
Based on the assessment of reanalysis products above (both long-tern trend and relationship with plant energy), we now set which reanalysis products we will include in the OA. For this particular case study, we use both products given the high regression relationships.
Step 8: Set up Monte Carlo inputs
The next step is to set up the Monte Carlo framework for the analysis. Specifically, we identify each source of uncertainty in the OA estimate and use that uncertainty to create distributions of the input and intermediate variables from which we can sample for each iteration of the OA code. For input variables, we can create such distributions beforehand. For intermediate variables, we must sample separately for each iteration.
Detailed descriptions of the sampled Monte Carlo inputs, which can be specified when initializing the MonteCarloAEP object if values other than the defaults are desired, are provided below:
slope, intercept, and num_outliers : These are intermediate variables that are calculated for each iteration of the code
outlier_threshold : Sample values between 2 and 3 which set the Huber algorithm outlier detection parameter. Varying this threshold accounts for analyst subjectivity on what data points constitute outliers and which do not.
metered_energy_fraction : Revenue meter energy measurements are associated with a measurement uncertainty of around 0.5%. This uncertainty is used to create a distribution centered at 1 (and with standard deviation therefore of 0.005). This column represents random samples from that distribution. For each iteration of the OA code, a value from this column is multiplied by the monthly revenue meter energy data before the data enter the OA code, thereby capturing the 0.5% uncertainty.
loss_fraction : Reported availability and curtailment losses are estimates and are associated with uncertainty. For now, we assume the reported values are associated with an uncertainty of 5%. Similar to above, we therefore create a distribution centered at 1 (with std of 0.05) from which we sample for each iteration of the OA code. These sampled values are then multiplied by the availability and curtaiment data independently before entering the OA code to capture the 5% uncertainty in the reported values.
num_years_windiness : This intends to capture the uncertainty associated with the number of historical years an analyst chooses to use in the windiness correction. The industry standard is typically 20 years and is based on the assumption that year-to-year wind speeds are uncorrelated. However, a growing body of research suggests that there is some correlation in year-to-year wind speeds and that there are trends in the resource on the decadal timescale. To capture this uncertainty both in the long-term trend of the resource and the analyst choice, we randomly sample integer values betweeen 10 and 20 as the number of years to use in the windiness correction.
loss_threshold : Due to uncertainty in reported availability and curtailment estimates, months with high combined losses are associated with high uncertainty in the calculated gross energy. It is common to remove such data from analysis. For this analysis, we randomly sample float values between 0.1 and 0.2 (i.e. 10% and 20%) to serve as criteria for the combined availability and curtailment losses. Specifically, months are excluded from analysis if their combined losses exceeds that criteria for the given OA iteration.
reanalyis_product : This captures the uncertainty of using different reanalysis products and, lacking a better method, is a proxy way of capturing uncertainty in the modelled monthly wind speeds. For each iteration of the OA code, one of the reanalysis products that we’ve already determined as valid (see the cells above) is selected.
Step 9: Run the OA code
We’re now ready to run the Monte-Carlo based OA code. We repeat the OA process “num_sim” times using different sampling combinations of the input and intermediate variables to produce a distribution of AEP values.
A single line of code here in the notebook performs this step, but below is more detail on what is being done.
Steps in OA process:
Set the wind speed and gross energy data to be used in the regression based on i) the reanalysis product to be used (Monte-Carlo sampled); ii) the NaN energy data criteria (1%); iii) Combined availability and curtailment loss criteria (Monte-Carlo sampled); and iv) the outlier criteria (Monte-Carlo sampled)
Normalize gross energy to 30-day months
Perform linear regression and determine slope and intercept values, their standard errors, and the covariance between the two
Use the information above to create distributions of possible slope and intercept values (e.g. mean equal to slope, std equal to the standard error) from which we randomly sample a slope and intercept value (note that slope and intercept values are highly negatively-correlated so the sampling from both distributions are constrained accordingly)
to perform the long term correction, first determine the long-term monthly average wind speeds (i.e. average January wind speed, average Februrary wind speed, etc.) based on a 10-20 year historical period as determined by the Monte Carlo process.
Apply the Monte-Carlo sampled slope and intercept values to the long-term monthly average wind speeds to calculate long-term monthly gross energy
‘Denormalize’ monthly long-term gross energy back to the normal number of days
Calculate AEP by subtracting out the long-term avaiability loss (curtailment loss is left in as part of AEP)
[14]:
# Run Monte-Carlo based OA
pa.run(num_sim=2000, reanal_subset=['era5', 'merra2'])
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 2000, 'reanal_subset': ['era5', 'merra2']}
100%|██████████| 2000/2000 [00:16<00:00, 124.60it/s]
INFO:operational_analysis.methods.plant_analysis:Run completed

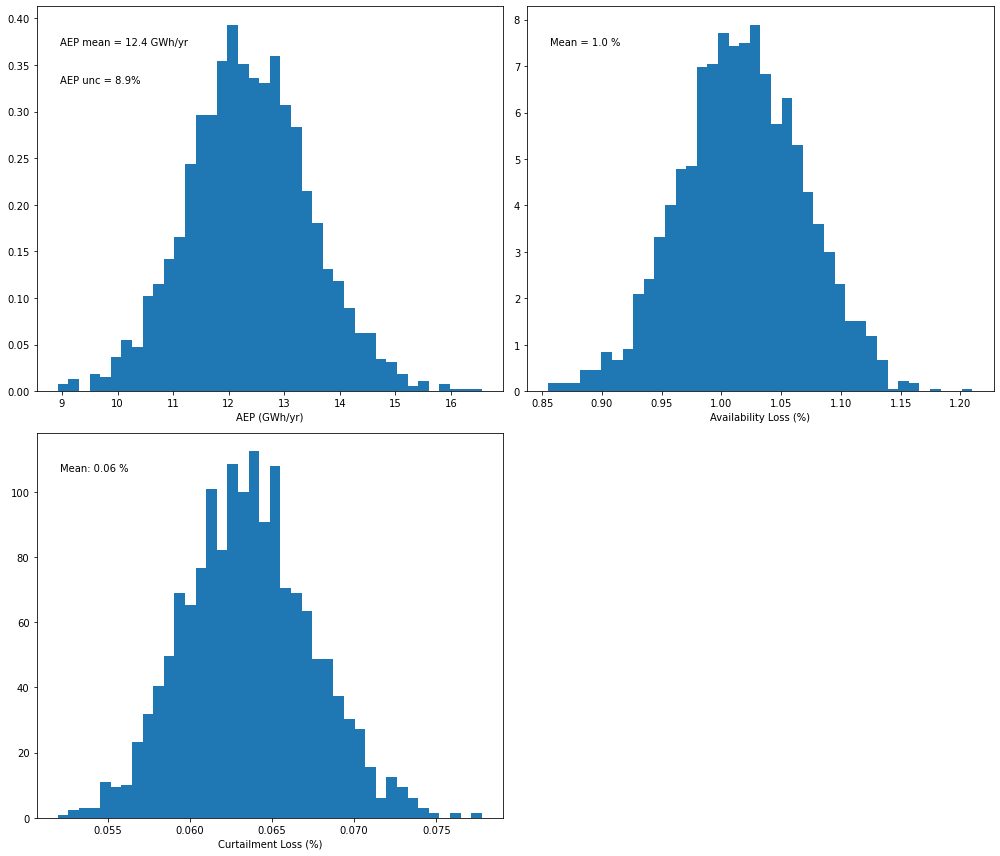

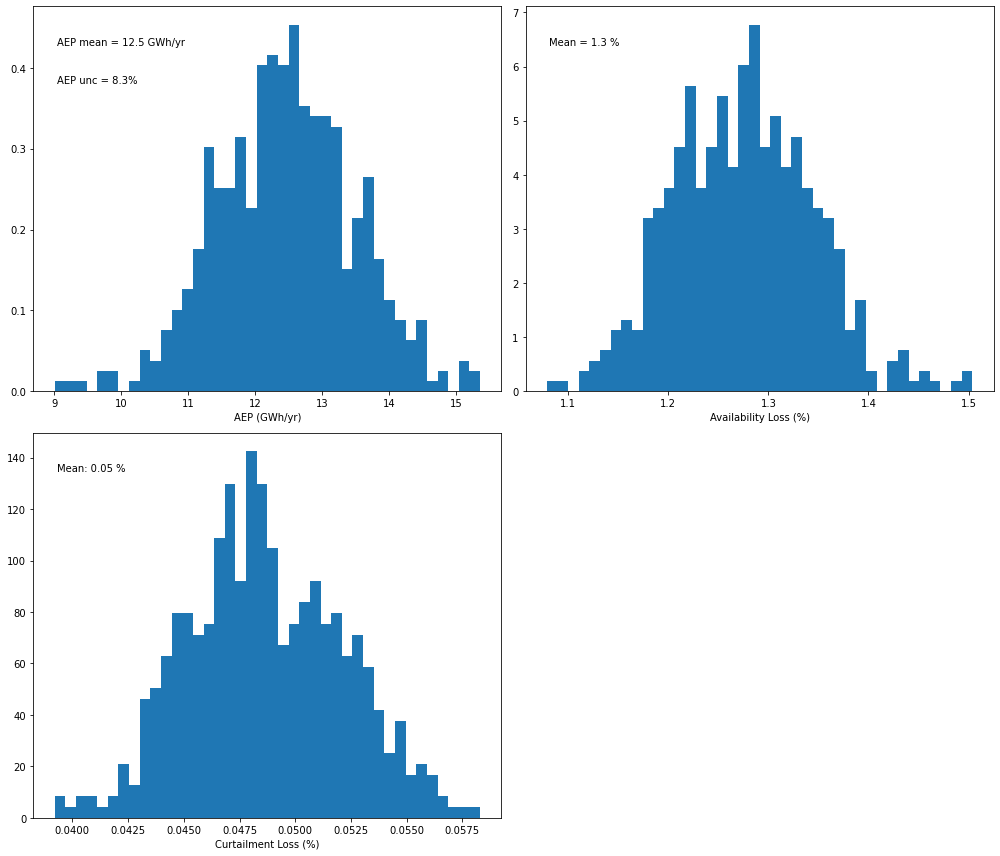

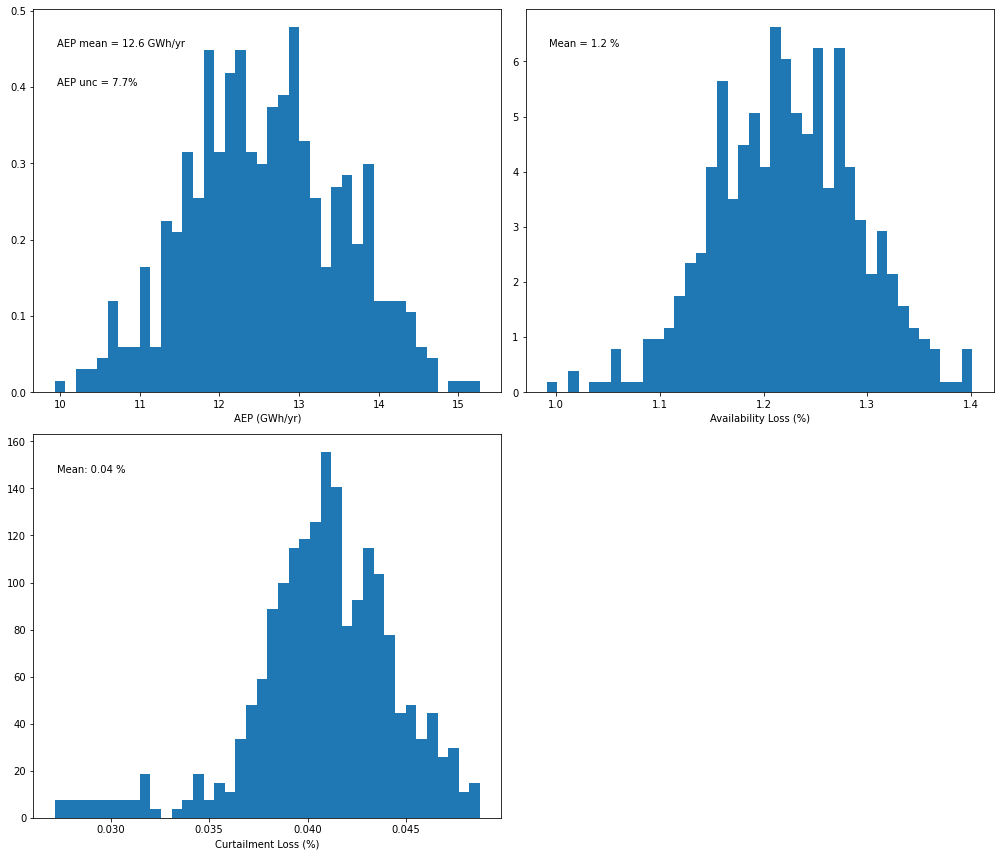

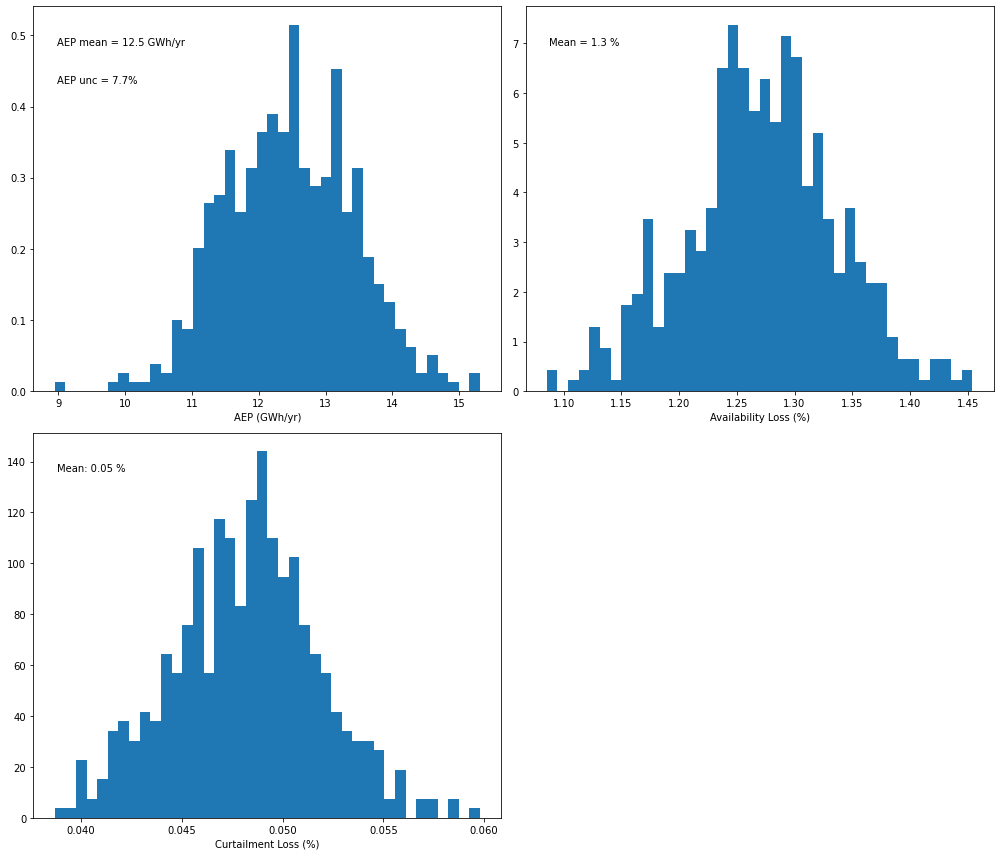

The key result is shown below: a distribution of AEP values from which uncertainty can be deduced. In this case, uncertainty is around 9%.
[15]:
# Plot a distribution of AEP values from the Monte-Carlo OA method
pa.plot_result_aep_distributions().show()
Step 10: Post-analysis visualization
Here we show some supplementary results of the Monte Carlo OA approach to help illustrate how it works.
First, it’s worth looking at the Monte-Carlo tracker data frame again, now that the slope, intercept, and number of outlier fields have been completed. Note that for transparency, debugging, and analysis purposes, we’ve also included in the tracker data frame the number of data points used in the regression.
[16]:
# Produce histograms of the various MC-parameters
mc_reg = pd.DataFrame(data = {'slope': pa._mc_slope.ravel(),
'intercept': pa._mc_intercept,
'num_points': pa._mc_num_points,
'metered_energy_fraction': pa._inputs.metered_energy_fraction,
'loss_fraction': pa._inputs.loss_fraction,
'num_years_windiness': pa._inputs.num_years_windiness,
'loss_threshold': pa._inputs.loss_threshold,
'reanalysis_product': pa._inputs.reanalysis_product})

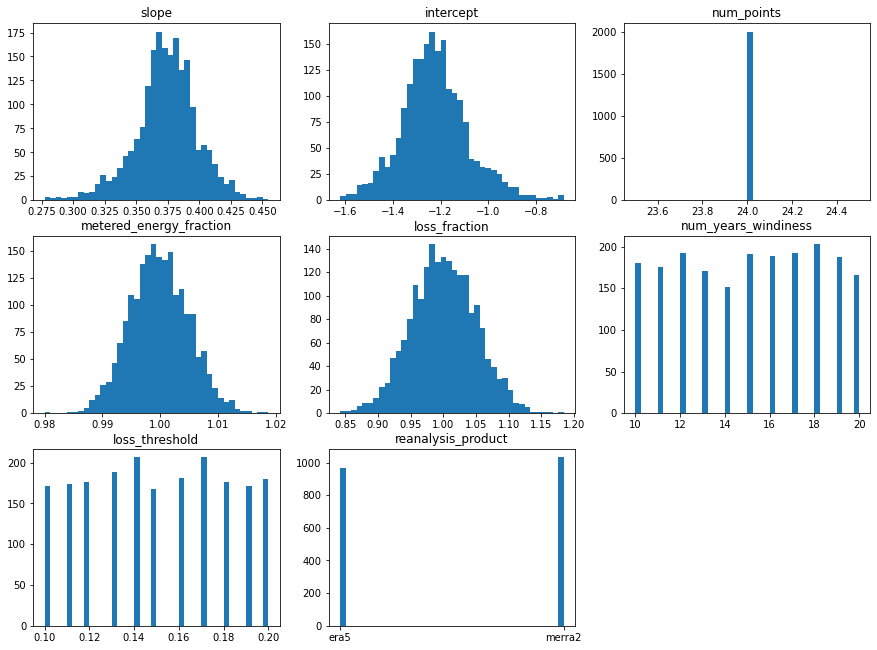

It’s useful to plot distributions of each variable to show what is happening in the Monte Carlo OA method. Based on the plot below, we observe the following:
metered_energy_fraction, and loss_fraction sampling follow a normal distribution as expected
The slope and intercept distributions appear normally distributed, even though different reanalysis products are considered, resulting in different regression relationships. This is likely because the reanalysis products agree with each other closely.
24 data points were used for all iterations, indicating that there was no variation in the number of outlier months removed
We see approximately equal sampling of the num_years_windiness, loss_threshold, and reanalysis_product, as expected
[17]:
plt.figure(figsize=(15,15))
for s in np.arange(mc_reg.shape[1]):
plt.subplot(4,3,s+1)
plt.hist(mc_reg.iloc[:,s],40)
plt.title(mc_reg.columns[s])
plt.show()
It’s worth highlighting the inverse relationship between slope and intercept values under the Monte Carlo approach. As stated earlier, slope and intercept values are strongly negatively correlated (e.g. slope goes up, intercept goes down) which is captured by the covariance result when performing linear regression. By constrained random sampling of slope and intercept values based on this covariance, we assure we aren’t sampling unrealisic combinations.

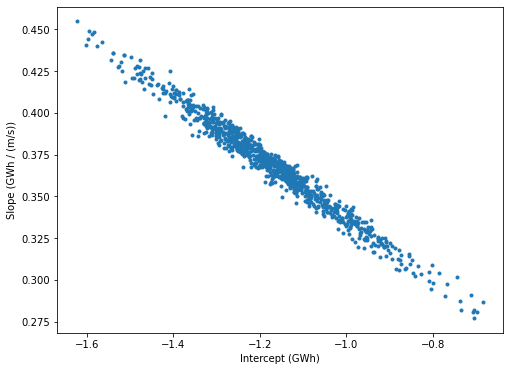

The plot below shows that the values are being sampled appropriately
[18]:
# Produce scatter plots of slope and intercept values, and overlay the resulting line of best fits over the actual wind speed
# and gross energy data points. Here we focus on the ERA-5 data
plt.figure(figsize=(8,6))
plt.plot(mc_reg.intercept[mc_reg.reanalysis_product =='era5'],mc_reg.slope[mc_reg.reanalysis_product =='era5'],'.')
plt.xlabel('Intercept (GWh)')
plt.ylabel('Slope (GWh / (m/s))')
plt.show()
We can look further at the influence of certain Monte Carlo parameters on the AEP result. For example, let’s see what effect the choice of reanalysis product has on the result:
[19]:
# Boxplot of AEP based on choice of reanalysis product
tmp_df=pd.DataFrame(data={'aep':pa.results.aep_GWh,'reanalysis_product':mc_reg['reanalysis_product']})
tmp_df.boxplot(column='aep',by='reanalysis_product',figsize=(8,6))
plt.ylabel('AEP (GWh/yr)')
plt.xlabel('Reanalysis product')
plt.title('AEP estimates by reanalysis product')
plt.suptitle("")
plt.show()
In this case, the two reanalysis products lead to similar AEP estimates, although MERRA2 yields slightly higher uncertainty.

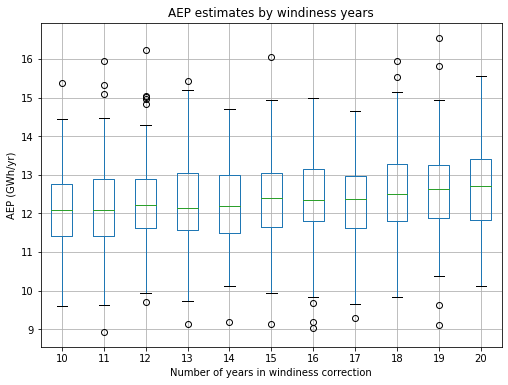

We can also look at the effect on the number of years used in the windiness correction:
[20]:
# Boxplot of AEP based on number of years in windiness correction
tmp_df=pd.DataFrame(data={'aep':pa.results.aep_GWh,'num_years_windiness':mc_reg['num_years_windiness']})
tmp_df.boxplot(column='aep',by='num_years_windiness',figsize=(8,6))
plt.ylabel('AEP (GWh/yr)')
plt.xlabel('Number of years in windiness correction')
plt.title('AEP estimates by windiness years')
plt.suptitle("")
plt.show()
As seen above, the number of years used in the windiness correction does not significantly impact the AEP estimate.
[ ]:
Example operational analysis using the augmented capabilities of the AEP class
[1]:
%load_ext autoreload
%autoreload 2
This notebook provides an overview and walk-through of the augmented capabilities which have been added to the plant-level operational energy asssessment (OA) of a wind plant in the PRUF project. The La Haute-Borne wind farm is used here and throughout the example notebooks.
The overall structure of the notebook follows the walk-through in the standard AEP example notebook ‘02_plant_aep_analysis,’ to which we refer the reader for a detailed description of the steps needed to prepare the analysis. Here, we focus on the application of various approaches in the AEP calculation, with different time resolutions, regression inputs and regression models used.
[14]:
# Import required packages
import os
import matplotlib.pyplot as plt
import numpy as np
import statsmodels.api as sm
import pandas as pd
import copy
from project_ENGIE import Project_Engie
from operational_analysis.methods import plant_analysis
In the call below, make sure the appropriate path to the CSV input files is specfied. In this example, the CSV files are located directly in the ‘examples/operational_AEP_analysis/data’ folder.
[2]:
# Load plant object
project = Project_Engie('./data/la_haute_borne')
[3]:
# Prepare data
project.prepare()
INFO:project_ENGIE:Loading SCADA data
INFO:operational_analysis.types.timeseries_table:Loading name:la-haute-borne-data-2014-2015
INFO:project_ENGIE:SCADA data loaded
INFO:project_ENGIE:Timestamp QC and conversion to UTC
INFO:project_ENGIE:Correcting for out of range of temperature variables
INFO:numexpr.utils:Note: NumExpr detected 16 cores but "NUMEXPR_MAX_THREADS" not set, so enforcing safe limit of 8.
INFO:numexpr.utils:NumExpr defaulting to 8 threads.
INFO:project_ENGIE:Flagging unresponsive sensors
INFO:project_ENGIE:Converting field names to IEC 61400-25 standard
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:merra2_la_haute_borne
INFO:operational_analysis.types.timeseries_table:Loading name:era5_wind_la_haute_borne
Comparison 1: AEP calculation using different regression models and different time resolution
The updated AEP class includes the choice of four different regression algorithms to calculate the long-term OA. The choice is based on what is specified by the reg_model parameter: - linear regression (reg_model = ‘lin’, default) - generalized additive regression model (reg_model = ‘gam’) - gradient boosting regressor (reg_model = ‘gbm’) - extremely randomized trees model (reg_model = ‘etr’)
Linear regression can be selected without restrictions, but should only be used at monthly resolution, since wind plant power curves are not linear at fine time resolution. On the other hand, as machine learning models are more suited for problems with a large number of data points, we have restricted the use of gam, gbm and etr regressors to OA performed at daily and hourly resolution only.
Here, we’ll calculate AEP using all four regression models, using only wind speed as input (Comparison 2 will show an example of a multivariate regression). The linear regression model is run at monthly resolution; the GBM and ETR models at daily resolution; the GAM model at hourly resolution.
[4]:
pa_lin = plant_analysis.MonteCarloAEP(project, reanal_products = ['merra2','era5'], time_resolution = 'M',
reg_temperature = False, reg_winddirection = False, reg_model = 'lin')
pa_gam = plant_analysis.MonteCarloAEP(project, reanal_products = ['merra2','era5'], time_resolution = 'H',
reg_temperature = False, reg_winddirection = False, reg_model = 'gam')
pa_gbm = plant_analysis.MonteCarloAEP(project, reanal_products = ['merra2','era5'], time_resolution = 'D',
reg_temperature = False, reg_winddirection = False, reg_model = 'gbm')
pa_etr = plant_analysis.MonteCarloAEP(project, reanal_products = ['merra2','era5'], time_resolution = 'D',
reg_temperature = False, reg_winddirection = False, reg_model = 'etr')
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
As an example, the monthly data frame below includes wind speed averages for both the reanalysis products selected for the analysis.
[5]:
# View the monthly data frame
pa_lin._aggregate.df.head()
[5]:
| energy_gwh | energy_nan_perc | num_days_expected | num_days_actual | availability_gwh | curtailment_gwh | gross_energy_gwh | availability_pct | curtailment_pct | avail_nan_perc | curt_nan_perc | nan_flag | availability_typical | curtailment_typical | combined_loss_valid | merra2 | era5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| time | |||||||||||||||||
| 2014-01-01 | 1.279667 | 0.0 | 31 | 31 | 0.008721 | 0.000000 | 1.288387 | 0.006769 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 7.227947 | 7.314878 |
| 2014-02-01 | 1.793873 | 0.0 | 28 | 28 | 0.005280 | 0.000000 | 1.799153 | 0.002934 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 8.598686 | 8.347006 |
| 2014-03-01 | 0.805549 | 0.0 | 31 | 31 | 0.000151 | 0.000000 | 0.805700 | 0.000188 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 5.207071 | 5.169673 |
| 2014-04-01 | 0.636472 | 0.0 | 30 | 30 | 0.002773 | 0.000000 | 0.639245 | 0.004338 | 0.000000 | 0.0 | 0.0 | False | True | True | True | 4.872304 | 4.756275 |
| 2014-05-01 | 1.154255 | 0.0 | 31 | 31 | 0.015176 | 0.000225 | 1.169656 | 0.012974 | 0.000192 | 0.0 | 0.0 | False | True | True | True | 6.351635 | 6.162751 |
We now run the Monte-Carlo based OA for the four setups specified above. The following lines of code launch the Monte Carlo-based OA for AEP. We identify each source of uncertainty in the OA estimate and use that uncertainty to create distributions of the input and intermediate variables from which we can sample for each iteration of the OA code.
We repeat the OA process “num_sim” times using different sampling combinations of the input and intermediate variables to produce a distribution of AEP values. Running the OA with the machine learning models at daily resolution is significantly slower than the case of a simple linear regression. Therefore, we have reduced the num_sim parameter to speed up the computation here. Once again, for a detailed description of the steps in the OA process, please refer to the standard AEP example notebook.
[6]:
# Run Monte-Carlo based OA - linear monthly
pa_lin.run(num_sim=1000)
# Run Monte-Carlo based OA - gam model, hourly resolution
pa_gam.run(num_sim=500)
# Run Monte-Carlo based OA - gradient boosting model, daily resolution
pa_gbm.run(num_sim=500)
# Run Monte-Carlo based OA - extra randomized tree model, daily resolution
pa_etr.run(num_sim=500)
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 1000, 'reanal_subset': ['merra2', 'era5']}
100%|██████████| 1000/1000 [00:14<00:00, 68.65it/s]
INFO:operational_analysis.methods.plant_analysis:Run completed
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 500, 'reanal_subset': ['merra2', 'era5']}
0%| | 0/500 [00:00<?, ?it/s]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
0%| | 1/500 [00:07<1:03:44, 7.66s/it]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
100%|██████████| 500/500 [05:11<00:00, 1.61it/s]
INFO:operational_analysis.methods.plant_analysis:Run completed
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 500, 'reanal_subset': ['merra2', 'era5']}
0%| | 0/500 [00:00<?, ?it/s]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
0%| | 2/500 [00:29<1:40:20, 12.09s/it]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
100%|██████████| 500/500 [02:33<00:00, 3.25it/s]
INFO:operational_analysis.methods.plant_analysis:Run completed
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 500, 'reanal_subset': ['merra2', 'era5']}
0%| | 0/500 [00:00<?, ?it/s]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
1%| | 5/500 [00:44<38:33, 4.67s/it]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
100%|██████████| 500/500 [08:35<00:00, 1.03s/it]
INFO:operational_analysis.methods.plant_analysis:Run completed

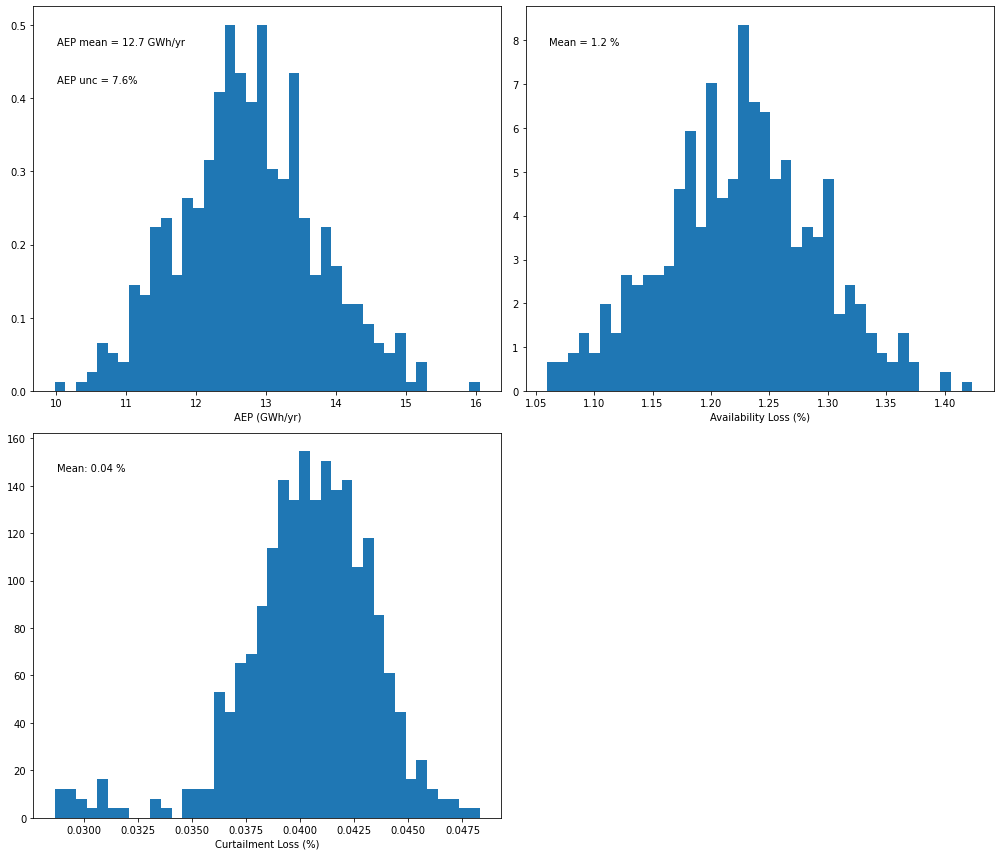

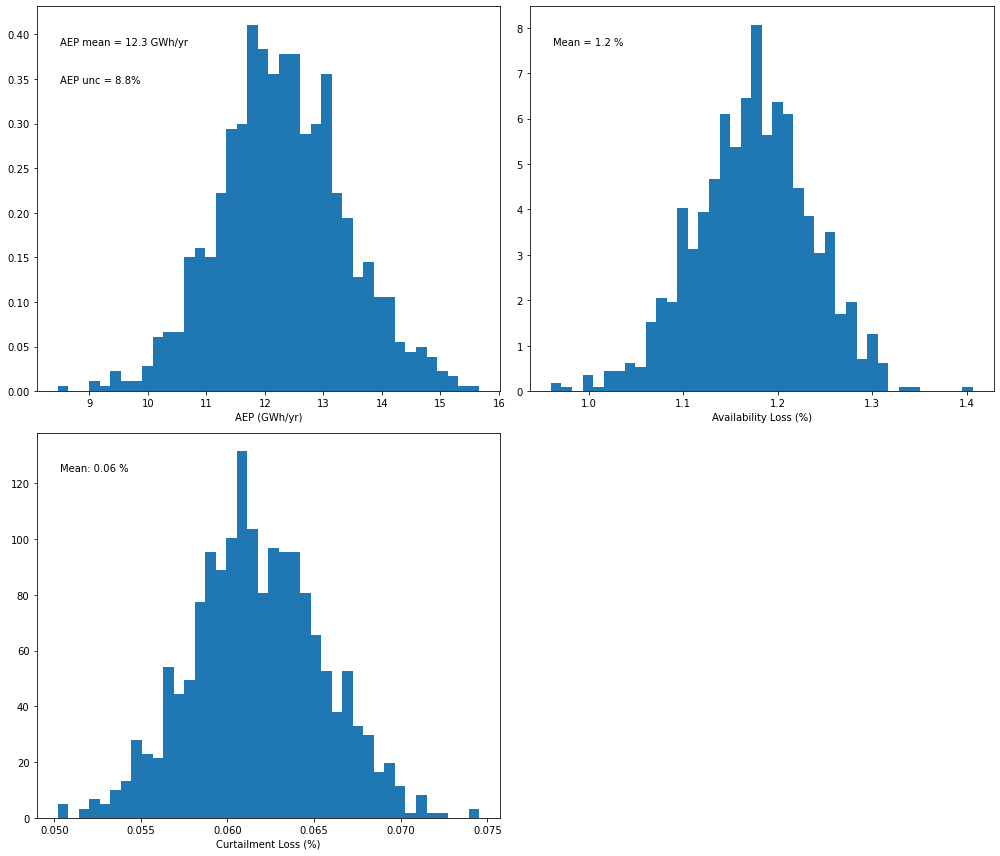

The key results for the AEP analysis are shown below: distributions of AEP values from which uncertainty can be deduced. We can now compare the AEP distributions obtained for the four configurations of the OA.
[7]:
# Plot a distribution of AEP values from the Monte-Carlo OA method - wind speed only
pa_lin.plot_result_aep_distributions().show()
[8]:
# Plot a distribution of AEP values from the Monte-Carlo OA method - gam model
pa_gam.plot_result_aep_distributions().show()
[9]:
# Plot a distribution of AEP values from the Monte-Carlo OA method - gradient boosting model
pa_gbm.plot_result_aep_distributions().show()
[10]:
# Plot a distribution of AEP values from the Monte-Carlo OA method - extra randomized tree model
pa_etr.plot_result_aep_distributions().show()
For this specific case, we see a decrease in AEP uncertainty when the calculation is performed with a machine learning regression model at daily resolution, which becomes even more significant when performing the calculation at hourly resolution.
Comparison 2: AEP calculation using various input variables
The augmented capabilities of the AEP class now allow the user to include temperature and/or wind direction as additional inputs to the long-term OA. This choice is controlled by the booleans “reg_temperature” and “reg_winddirection”. In this example, we will compute AEP using a multivariate hourly GAM regression, including wind speed and temperature as inputs, and compare the results with the univariate GAM applied in the previous comparison.
[11]:
pa_gam_T = plant_analysis.MonteCarloAEP(project, reanal_products = ['merra2','era5'], time_resolution = 'H',
reg_temperature = True, reg_winddirection = False, reg_model = 'gam')
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
We now run the Monte-Carlo based OA for this new setup:
[12]:
# Run Monte-Carlo based OA - gam model
pa_gam_T.run(num_sim=500)
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 500, 'reanal_subset': ['merra2', 'era5']}
0%| | 0/500 [00:00<?, ?it/s]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
0%| | 1/500 [00:18<2:32:54, 18.39s/it]
Fitting 5 folds for each of 20 candidates, totalling 100 fits
100%|██████████| 500/500 [09:23<00:00, 1.13s/it]
INFO:operational_analysis.methods.plant_analysis:Run completed
And we can now take a look at the AEP distribution:
[13]:
# Plot a distribution of AEP values from the Monte-Carlo OA method - wind speed + temperature + wind direction
pa_gam_T.plot_result_aep_distributions().show()
In this case, only a slight reduction in AEP uncertainty is achieved when temperature is added as additional input to the hourly GAM regression. Our analysis (Bodini et al. 2021, Wind Energy) showed how adding temperature as additional input has the largest benefits for those wind plants that experience a strong seasonal cycle, which might not be the case for the specific wind plant considered in this example.
[ ]:
The next step in the gap analysis is to calculate the Turbine Ideal Energy (TIE) for the wind farm based on SCADA data
[1]:
%load_ext autoreload
%autoreload 2
This notebook provides an overview and walk-through of the turbine ideal energy (TIE) method in OpenOA. The TIE metric is defined as the amount of electricity generated by all turbines at a wind farm operating under normal conditions (i.e., not subject to downtime or significant underperformance, but subject to wake losses and moderate turbine performance losses). The approach to calculate TIE is to:
Filter out underperforming data from the power curve for each turbine,
Develop a statistical relationship between the remaining power data and key atmospheric variables from a long-term reanalysis product
Long-term correct the period of record power data using the above statistical relationship
Sum up the long-term corrected power data across all turbines to get TIE for the wind farm
Here we use different reanalysis products to capture the uncertainty around the modeled wind resource. We also consider uncertainty due to power data accuracy and the power curve filtering choices for identifying normal turbine performance made by the analyst.
In this example, the process for estimating TIE is illustrated both with and without uncertainty quantification.
[2]:
# Import required packages
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from project_ENGIE import Project_Engie
from operational_analysis.methods import turbine_long_term_gross_energy
In the call below, make sure the appropriate path to the CSV input files is specfied. In this example, the CSV files are located directly in the ‘examples/data/la_haute_borne’ folder
[3]:
# Load plant object
project = Project_Engie('./data/la_haute_borne')
[4]:
# Load and prepare the wind farm data
project.prepare()
INFO:project_ENGIE:Loading SCADA data
INFO:operational_analysis.types.timeseries_table:Loading name:la-haute-borne-data-2014-2015
INFO:project_ENGIE:SCADA data loaded
INFO:project_ENGIE:Timestamp QC and conversion to UTC
INFO:project_ENGIE:Correcting for out of range of temperature variables
INFO:project_ENGIE:Flagging unresponsive sensors
INFO:numexpr.utils:NumExpr defaulting to 8 threads.
INFO:project_ENGIE:Converting field names to IEC 61400-25 standard
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:merra2_la_haute_borne
INFO:operational_analysis.types.timeseries_table:Loading name:era5_wind_la_haute_borne
[5]:
# Let's take a look at the columns in the SCADA data frame
project._scada.df.columns
[5]:
Index(['id', 'wrot_BlPthAngVal1_avg', 'wmet_wdspd_avg', 'wmet_VaneDir_avg',
'wmet_EnvTmp_avg', 'wyaw_YwAng_avg', 'wmet_HorWdDir_avg', 'wtur_W_avg',
'energy_kwh'],
dtype='object')
TIE calculation without uncertainty quantification
Next we create a TIE object which will contain the analysis to be performed. The method has the ability to calculate uncertainty in the TIE metric through a Monte Carlo sampling of filtering thresholds, power data, and reanalysis product choices. For now, we turn this option off and run the method a single time.
[6]:
ta = turbine_long_term_gross_energy.TurbineLongTermGrossEnergy(project)
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Initializing TurbineLongTermGrossEnergy Object
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Note: uncertainty quantification will NOT be performed in the calculation
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Processing SCADA data into dictionaries by turbine (this can take a while)
All of the steps in the TI calculation process are pulled under a single run() function. These steps include:
Processing reanalysis data to daily averages.
Filtering the SCADA data
Fitting the daily reanalysis data to daily SCADA data using a Generalized Additive Model (GAM)
Apply GAM results to calculate long-term TIE for the wind farm
By setting UQ = False (the default argument value), we must manually specify key filtering thresholds that would otherwise be sampled from a range of values through Monte Carlo. Specifically, we must set thresholds applied to the bin_filter() function in the toolkits.filtering class of OpenOA.
[7]:
# Specify filter threshold values to be used
wind_bin_thresh = 2.0 # Exclude data outside 2 m/s of the median for each power bin
max_power_filter = 0.90 # Don't apply bin filter above 0.9 of turbine capacity
We also must decide how to deal with missing data when computing daily sums of energy production from each turbine. Here we set the threshold at 0.9 (i.e., if greater than 90% of SCADA data are available for a given day, scale up the daily energy by the fraction of data missing. If less than 90% data recovery, exclude that day from analysis.
[8]:
# Set the correction threshold to 90%
correction_threshold = 0.90
Now we’ll call the run() method to calculate TIE, choosing two reanalysis products to be used in the TIE calculation process.
[9]:
# We can choose to save key plots to a file by setting enable_plotting = True and
# specifying a directory to save the images. For now we turn off this feature.
ta.run(reanal_subset = ['era5', 'merra2'], enable_plotting = False, plot_dir = None,
wind_bin_thresh = wind_bin_thresh, max_power_filter = max_power_filter,
correction_threshold = correction_threshold)
0%| | 0/2 [00:00<?, ?it/s]INFO:operational_analysis.methods.turbine_long_term_gross_energy:Filtering turbine data
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Processing reanalysis data to daily averages
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Processing scada data to daily sums
0it [00:00, ?it/s]
4it [00:00, 27.11it/s]
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Setting up daily data for model fitting
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Fitting model data
/Users/esimley/opt/anaconda3/lib/python3.7/site-packages/scipy/linalg/basic.py:1321: RuntimeWarning: internal gelsd driver lwork query error, required iwork dimension not returned. This is likely the result of LAPACK bug 0038, fixed in LAPACK 3.2.2 (released July 21, 2010). Falling back to 'gelss' driver.
x, resids, rank, s = lstsq(a, b, cond=cond, check_finite=False)
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Applying fitting results to calculate long-term gross energy
50%|█████ | 1/2 [00:02<00:02, 2.02s/it]INFO:operational_analysis.methods.turbine_long_term_gross_energy:Filtering turbine data
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Processing reanalysis data to daily averages
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Processing scada data to daily sums
0it [00:00, ?it/s]
4it [00:00, 25.93it/s]
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Setting up daily data for model fitting
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Fitting model data
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Applying fitting results to calculate long-term gross energy
100%|██████████| 2/2 [00:03<00:00, 1.93s/it]
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Run completed
Now that we’ve finished the TIE calculation, let’s examine results
[10]:
ta._plant_gross
[10]:
array([[13587744.52216543],
[13716630.11389883]])
[11]:
# What is the long-term annual TIE for whole plant
print('Long-term turbine ideal energy is %s GWh/year' %np.round(np.mean(ta._plant_gross/1e6),1))
Long-term turbine ideal energy is 13.7 GWh/year
The long-term TIE value of 13.7 GWh/year is based on the mean TIE resulting from the two reanalysis products considered.

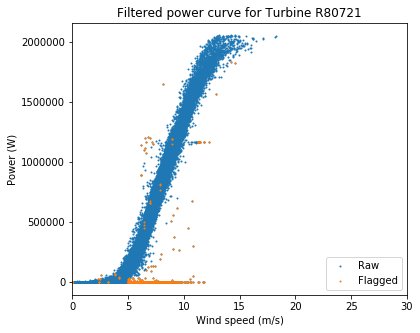

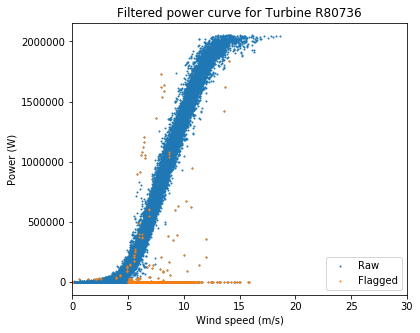

Next, we can examine how well the filtering worked by examining the power curves for each turbine using the plot_filtered_power_curves() function.
[12]:
# Currently saving figures in examples folder. The folder where figures are saved can be changed if desired.
ta.plot_filtered_power_curves(save_folder = "./", output_to_terminal = True)
Overall these are very clean power curves, and the filtering algorithms seem to have done a good job of catching the most egregious outliers.

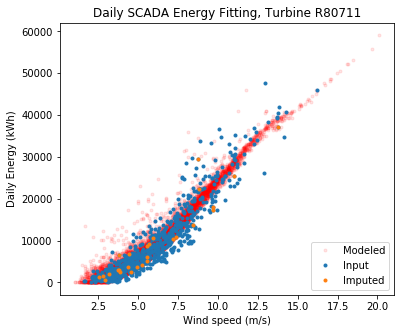

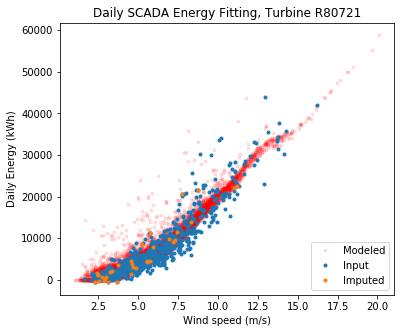

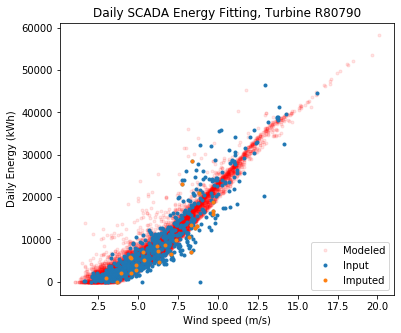

Now let’s look at the daily data and how well the power curve fit worked
[13]:
# Currently saving figures in examples folder. The folder where figures are saved can be changed if desired.

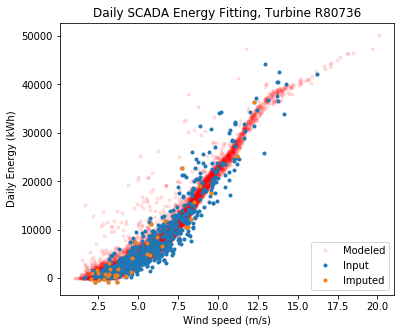

ta.plot_daily_fitting_result(save_folder = "./", output_to_terminal = True)
Overall the fit looks good. The modeled data sometimes estimate higher energy at low wind speeds compared to the observed, but keep in mind the model fits to long term wind speed, wind direction, and air density, whereas we are only showing the relationship to wind speed here.
Note that ‘imputed’ means daily power data that were missing for a specific turbine, but were calculated by establishing statistical relationships with that turbine and its neighbors. This is necessary since a wind farm often has one turbine down and, without imputation, very little daily data would be left if we excluded days when a turbine was down.
TIE calculation including uncertainty quantification
Now we will create a TIE object for calculating TIE and quantifying the uncertainty in our estimate. The method estimates uncertainty in the TIE metric through a Monte Carlo sampling of filtering thresholds, power data, and reanalysis product choices.
Note that we set the number of Monte Carlo simulations to only 100 in this example because of the relatively high computational effort required to perform a single iteration. In practice, a larger number of simulations is recommended (the default value is 2000).
[14]:
ta = turbine_long_term_gross_energy.TurbineLongTermGrossEnergy(project,
UQ = True, # enable uncertainty quantification
num_sim = 100 # number of Monte Carlo simulations to perform
)
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Initializing TurbineLongTermGrossEnergy Object
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Note: uncertainty quantification will be performed in the calculation
INFO:operational_analysis.methods.turbine_long_term_gross_energy:Processing SCADA data into dictionaries by turbine (this can take a while)
With uncertainty quantification enabled (UQ = True), we can specify the assumed uncertainty of the SCADA power data (0.5% by default) and ranges of two key filtering thresholds from which the Monte Carlo simulations will sample. Specifically, these thresholds are applied to the bin_filter() function in the toolkits.filtering class of OpenOA.
Note that the following parameters are the default values used in the run() method.
[16]:
uncertainty_scada=0.005 # Assumed uncertainty of SCADA power data (0.5%)
# Range of filter threshold values to be used by Monte Carlo simulations
# Data outside of a range of wind speeds from 1 to 3 m/s of the median for each power bin are considered
wind_bin_thresh=(1, 3)
# The bin filter will be applied up to fractions of turbine capacity from 80% to 90%
max_power_filter=(0.8, 0.9)
We will consider a range of availability thresholds for dealing with missing data when computing daily sums of energy production from each turbine (i.e., if greater than the given threshold of SCADA data are available for a given day, scale up the daily energy by the fraction of data missing. If less than the given threshold of data are available, exclude that day from analysis. Here we set the range of thresholds as 85% to 95%.
[17]:
correction_threshold=(0.85, 0.95)
Now we’ll call the run() method to calculate TIE with uncertainty quantification, again choosing two reanalysis products to be used in the TIE calculation process.
Note that without uncertainty quantification (UQ = False), a separate TIE value is calculated for each reanalysis product specified. However, when UQ = True, the reanalysis product is treated as another Monte Carlo sampling parameter. Thus, the impact of different reanlysis products is considered to be part of the overall uncertainty in TIE.
[ ]:
# We can choose to save key plots to a file by setting enable_plotting = True and
# specifying a directory to save the images. For now we turn off this feature.
ta.run(reanal_subset = ['era5', 'merra2'], enable_plotting = False, plot_dir = None,
uncertainty_scada = uncertainty_scada, wind_bin_thresh = wind_bin_thresh,
max_power_filter = max_power_filter, correction_threshold = correction_threshold)
Now that we’ve finished the Monte Carlo TIE calculation simulations, let’s examine results
[19]:
np.mean(ta._plant_gross)
[19]:
13652808.237545202
[20]:
np.std(ta._plant_gross)
[20]:
103462.13139486084
[21]:
# Mean long-term annual TIE for whole plant
print('Mean long-term turbine ideal energy is %s GWh/year' %np.round(np.mean(ta._plant_gross/1e6),1))
# Uncertainty in long-term annual TIE for whole plant
print('Uncertainty in long-term turbine ideal energy is %s GWh/year, or %s percent' % (np.round(np.std(ta._plant_gross/1e6),1), np.round(100*np.std(ta._plant_gross)/np.mean(ta._plant_gross),1)))
Mean long-term turbine ideal energy is 13.7 GWh/year
Uncertainty in long-term turbine ideal energy is 0.1 GWh/year, or 0.8 percent
As expected, the mean long-term TIE is close to the earlier estimate without uncertainty quantification. A relatively low uncertainty has been estimated for the TIE calculations. This is a result of the relatively close agreement between the two reanalysis products and the clean power curves plotted earlier.
The next step in the gap analysis is to estimate electrical losses from the wind farm.
[1]:
%load_ext autoreload
%autoreload 2
Calculating electrical losses in this method is relatively straightforward. In short, the sum of turbine energy is compared to the sum of metered energy, with the differnce equaling the electrical losses for the wind farm. However, the time resolution of the metered data and dealing with missing data are important aspects of this method.
The approach is to first calculate daily sums of turbine and revenue meter energy over the plant period of record. Only those days where all turbines and the revenue meter were reporting for all timesteps are considered. Electrical loss is then the difference in total turbine energy production and meter production over those concurrent days.
Uncertainty in the calculated electrical losses is estimated by applying a Monte Carlo approach to sample revenue meter data and SCADA data with a 0.5% imposed uncertainty. One filtering parameter is sampled too. The uncertainty in estimated electrical losses is quantified as the standard deviation of the distribution of losses obtained from the MC sampling.
In this example, the procedure for calculating electrical losses is illustrated with and without uncertainty quantification.
In the case that meter data is not provided on a daily or sub-daily basis (e.g. monthly), a different approach is implemented. The sum of daily turbine energy is corrected for any missing reported energy data from the turbines based on the ratio of expected number of data counts per day to the actual. Daily corrected sum of turbine energy is then summed on a monthly basis. Electrical loss is then the difference between total corrected turbine energy production and meter production over those concurrent months.
[2]:
# Import required packages
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from project_ENGIE import Project_Engie
from operational_analysis.methods import electrical_losses
In the call below, make sure the appropriate path to the CSV input files is specfied. In this example, the CSV files are located directly in the ‘examples/operational_AEP_analysis/data’ folder.
[3]:
# Load wind farm object
project = Project_Engie('./data/la_haute_borne')
[4]:
# Load and prepare the wind farm data
project.prepare()
INFO:project_ENGIE:Loading SCADA data
INFO:operational_analysis.types.timeseries_table:Loading name:la-haute-borne-data-2014-2015
INFO:project_ENGIE:SCADA data loaded
INFO:project_ENGIE:Timestamp QC and conversion to UTC
INFO:project_ENGIE:Correcting for out of range of temperature variables
INFO:project_ENGIE:Flagging unresponsive sensors
INFO:numexpr.utils:NumExpr defaulting to 8 threads.
INFO:project_ENGIE:Converting field names to IEC 61400-25 standard
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:merra2_la_haute_borne
INFO:operational_analysis.types.timeseries_table:Loading name:era5_wind_la_haute_borne
Electrical loss estimation without uncertainty quantification
Next we create an Electrical Loss object which will contain the analysis to be performed. The method has the ability to calculate uncertainty in the electrical losses through a Monte Carlo sampling of power data based on its measurement uncertainty. For now, we turn this option off and calculate a single electrical loss value.
[5]:
# Create Electrical Loss object
el = electrical_losses.ElectricalLosses(project)
INFO:operational_analysis.methods.electrical_losses:Initializing Electrical Losses Object
INFO:operational_analysis.methods.electrical_losses:Note: uncertainty quantification will NOT be performed in the calculation
[6]:
# Now we run the analysis using the run() function in the method
el.run(uncertainty_correction_thresh=0.95 # If dealing with monthly meter data, exclude months with less than 95%
# data coverage
)
INFO:operational_analysis.methods.electrical_losses:Processing SCADA data
INFO:operational_analysis.methods.electrical_losses:Processing meter data
INFO:operational_analysis.methods.electrical_losses:Calculating electrical losses
100%|██████████| 1/1 [00:00<00:00, 123.34it/s]
Now that the analyiss is complete, let’s examine the results
[7]:
el._electrical_losses[0][0]
[7]:
0.019994645742959616
[8]:
# Electrical losses for the wind farm
print('Electrical losses are %s percent' % np.round(el._electrical_losses[0][0]*100,1))
Electrical losses are 2.0 percent
Now let’s plot electrical losses by month
[9]:
plt.figure(figsize = (8,4))
monthly_merge = el._merge_df.resample('MS').sum()
plt.plot((monthly_merge['corrected_energy'] - monthly_merge['energy_kwh']) / monthly_merge['corrected_energy'] * 100)
plt.xlabel('Month')
plt.ylabel('Electrical Losses (%)')
/Users/esimley/opt/anaconda3/lib/python3.7/site-packages/pandas/plotting/_converter.py:129: FutureWarning: Using an implicitly registered datetime converter for a matplotlib plotting method. The converter was registered by pandas on import. Future versions of pandas will require you to explicitly register matplotlib converters.
To register the converters:
>>> from pandas.plotting import register_matplotlib_converters
>>> register_matplotlib_converters()
warnings.warn(msg, FutureWarning)
[9]:
Text(0, 0.5, 'Electrical Losses (%)')

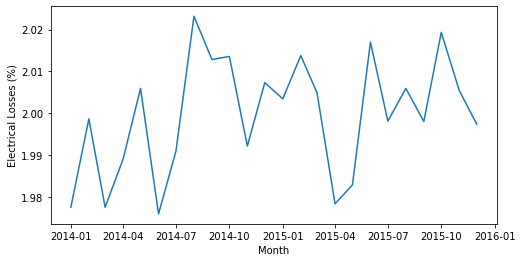

We see that electrical losses vary between 1.98 and 2.02%. This is a narrow range, but keep in mind the meter data for La Haute Borne was synthesized by NREL based on the SCADA data and sampling around a 2% electrical loss with a standard deviation of 0.5%. Part of the reason for the very low spread in estimated monthly electrical losses is that uncertainty was introduced to the meter data at the 10-minute level when the data were synthesized. This uncertainty tends to get averaged out over the period of record. Normally electrical losses using actual meter data would not be this consistent and would generally show seasonal trends.
Electrical loss estimation including uncertainty quantification
Next we create an Electrical Loss object with uncertainty quantification enabled and the number of Monte Carlo simulations set to 3000. This method calculates uncertainty in the electrical losses through a Monte Carlo sampling of power data based on its assumed measurement uncertainty of 0.5%. Furthermore, if dealing with monthly meter data, a range of availabiity thresholds used to remove months with low data coverage is sampled.
[10]:
# Create Electrical Loss object
el = electrical_losses.ElectricalLosses(project, UQ = True, # enable UQ
num_sim = 3000 # number of Monte Carlo simulations to perform
)
INFO:operational_analysis.methods.electrical_losses:Initializing Electrical Losses Object
INFO:operational_analysis.methods.electrical_losses:Note: uncertainty quantification will be performed in the calculation
[11]:
# Now we run the analysis using the run() function in the method
el.run(uncertainty_meter=0.005, # 0.5% uncertainty in meter data
uncertainty_scada=0.005, # 0.5% uncertainty in scada data
uncertainty_correction_thresh=(0.9, 0.995) # If dealing with monthly meter data, exclude months with less than 95%
# data coverage
)
INFO:operational_analysis.methods.electrical_losses:Processing SCADA data
INFO:operational_analysis.methods.electrical_losses:Processing meter data
INFO:operational_analysis.methods.electrical_losses:Calculating electrical losses
100%|██████████| 3000/3000 [00:10<00:00, 292.52it/s]
Now let’s examine the results from the Monte Carlo simulations
[12]:
np.mean(el._electrical_losses)
[12]:
0.02008757941003309
[13]:
np.std(el._electrical_losses)
[13]:
0.006770014201072663
[14]:
# Electrical losses for the wind farm
print('Electrical losses are %s percent' % np.round(np.mean(el._electrical_losses)*100,1))
print('Uncertainty in the electrical loss estimate is %s percent' % np.round(np.std(el._electrical_losses)*100,1))
Electrical losses are 2.0 percent
Uncertainty in the electrical loss estimate is 0.7 percent
Again, the expected electrical losses are 2.0 percent. The uncertainty in the calculated losses is estimated to be 0.7%. This uncertainty value is given by the standard deviation of electrical losses over all Monte Carlo iterations and is primarily driven by the assumed 0.5% uncertainty for meter and SCADA power values.
Perform energy yield assessment (EYA)-operational assessment (OA) gap analysis
This notebook will explore the use of the energy yield assessment (EYA) gap analysis method in OpenOA. This method attributes differences in an EYA-estimate and an operational assessment (OA) estimate of annual energy production (AEP; or net energy, P50). Differences in availability loss estimates, electrical loss estimates, and turbine ideal energy estimates are analyzed. The latter metric incorporates many aspects of an EYA, including the wind resource estimate, wake loss estimate, turbine performance, and blade degradation.
The gap analysis is based on comparing the following three key metrics:
Availability loss
Electrical loss
Sum of turbine ideal energy
Here turbine ideal energy is defined as the energy produced during ‘normal’ or ‘ideal’ turbine operation, i.e., no downtime or considerable underperformance events. This value encompasses several different aspects of an EYA (wind resource estimate, wake losses, turbine performance, and blade degradation) and in most cases should have the largest impact in a gap analysis relative to the first two metrics.
This gap analysis method is fairly straighforward. Relevant EYA and OA metrics are passed in when defining the class, differences in EYA estimates and OA results are calculated, and then a ‘waterfall’ plot is created showing the differences between the EYA and OA-estimated AEP values and how they are linked from differences in the three key metrics.
Waterfall plot code was taken and modified from the following post: https://pbpython.com/waterfall-chart.html
[1]:
# Import required packages
from project_ENGIE import Project_Engie
from operational_analysis.methods import plant_analysis
from operational_analysis.methods import turbine_long_term_gross_energy
from operational_analysis.methods import electrical_losses
from operational_analysis.methods import eya_gap_analysis
[2]:
# Load plant object and process plant data
project = Project_Engie('./data/la_haute_borne')
project.prepare()
INFO:project_ENGIE:Loading SCADA data
INFO:operational_analysis.types.timeseries_table:Loading name:la-haute-borne-data-2014-2015
INFO:project_ENGIE:SCADA data loaded
INFO:project_ENGIE:Timestamp QC and conversion to UTC
INFO:project_ENGIE:Correcting for out of range of temperature variables
INFO:project_ENGIE:Flagging unresponsive sensors
INFO:numexpr.utils:NumExpr defaulting to 8 threads.
INFO:project_ENGIE:Converting field names to IEC 61400-25 standard
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:plant_data
INFO:operational_analysis.types.timeseries_table:Loading name:merra2_la_haute_borne
INFO:operational_analysis.types.timeseries_table:Loading name:era5_wind_la_haute_borne
Calculate AEP, TIE, and electrical losses from operational data
The first step is to calculate annual energy production (AEP) for the wind farm (Example 02), turbine ideal energy (TIE) for the wind farm (Example 03) and calculate electrical losses (Example 04). Please refer to detailed documentation of these methods in the previous example notebooks.
[3]:
# Calculate AEP
pa = plant_analysis.MonteCarloAEP(project, reanal_products = ['era5', 'merra2'])
pa.run(num_sim=20000, reanal_subset=['era5', 'merra2'])
INFO:operational_analysis.methods.plant_analysis:Initializing MonteCarloAEP Analysis Object
INFO:operational_analysis.methods.plant_analysis:Running with parameters: {'uncertainty_meter': 0.005, 'uncertainty_losses': 0.05, 'uncertainty_loss_max': array([10., 20.]), 'uncertainty_windiness': array([10., 20.]), 'uncertainty_nan_energy': 0.01, 'num_sim': 20000, 'reanal_subset': ['era5', 'merra2']}
0%| | 0/20000 [00:00<?, ?it/s]/Users/esimley/opt/anaconda3/lib/python3.7/site-packages/sklearn/linear_model/base.py:503: RuntimeWarning: internal gelsd driver lwork query error, required iwork dimension not returned. This is likely the result of LAPACK bug 0038, fixed in LAPACK 3.2.2 (released July 21, 2010). Falling back to 'gelss' driver.
linalg.lstsq(X, y)
100%|██████████| 20000/20000 [03:28<00:00, 95.93it/s]
INFO:operational_analysis.methods.plant_analysis:Run completed
[ ]:
# Calculate TIE
ta = turbine_long_term_gross_energy.TurbineLongTermGrossEnergy(project)
ta.run(reanal_subset = ['era5', 'merra2'],
max_power_filter = 0.85,
wind_bin_thresh = 2.0,
correction_threshold = 0.90,
enable_plotting = False,
plot_dir = None)
[ ]:
# Calculate electrical losses
el = electrical_losses.ElectricalLosses(project)
el.run()
Now that we’ve calculated the key operational metrics, we setup some arrays that the gap analysis method needs to run.
Summarize operational results and create EYA data for comparison
[ ]:
# First summarize key operational results
aep = pa.results.aep_GWh.mean()
avail = pa.results.avail_pct.mean()
elec = el._electrical_losses[0][0]
tie = ta._plant_gross[0][0]/1e6
print(aep, avail, elec, tie)
[ ]:
# Define operational data list
oa_list = [aep, avail, elec, tie]
# AEP (GWh/yr), availability loss (fraction), electrical loss (fraction), turbine ideal energy (GWh/yr)
# Define EYA data list (we are fabricating these values here as an example)
eya_list = [16.46, 20., 0.04, 0.014, 0.037, 0.011, 0.087]
# AEP (GWh/yr), Gross energy (GWh/yr), availability loss (fraction), electrical loss (fraction), turbine performance loss (fraction)
# blade degradation loss (fraction), wake loss (fraction)
Perform gap analysis
Now that we have the data we need, we first create a gap analysis object
[ ]:
gap_anal = eya_gap_analysis.EYAGapAnalysis(plant = 'La Haute Borne', eya_estimates = eya_list, oa_results = oa_list)
Now we run the analysis, which by default outputs a waterfall plot showing how the gap between EYA-reported AEP and plant-measured AEP can be explained:
[ ]:
gap_anal.run()
In this example, they EYA estimate of AEP was about 4 GWh/yr higher than the OA result. This difference is largely explained by a large difference in turbine ideal energy (overestimated in EYA), and smaller differences in availability (underestimated in EYA) and electrical losses (overestimated in EYA). A total of 1 GWh/yr is left unexplained or uncertain using this method.
